Handheld and or Showerhead on a Slidebar
- Last updated
-
-
Save as PDF
This article will explain how to identify a handheld on a slidebar through dimensions, features and gallons per minute. It also includes pictures of each unit for a visual confirmation.
A handheld shower on a vertical slide bar is a showerhead that has a flexible hose threaded to one end. The other side of the hose is then threaded onto a drop ell (a female pipe threading that threads onto a male pipe from the wall).
- Handheld showers on a vertical slide bar are typically sold separately (not sold with the handle and trim package).
- The word Moen will appear on the face of the handheld shower. Other manufactures sell handheld showers that look similar.
- The vertical slide bar contains an adjustable slider (holder).
- The mounting bracket (this is what holds the vertical bar to the wall).
- The brackets came in different shapes (square, oval, round) for different models.
- The slide bar length.
- This is not the actual overall length of the slide bar as the mounting brackets can add to the dimension.
|
N207C0-Nebia by Moen 3.0
|
Intro Year:
After 2020
Warranty:
Lifetime Limited Warranty.
|
Dimensions:
- Slide Bar Length: 23-1/2"
- Spray Face Diameter:
- Showerhead: 8"
- Handshower: 2-1/2" wide
GPM:
- Showerhead: 1.35
- Showerhead and Handshower together: 1.75
Finishes:
- Chrome/White
- Spot Resist Brushed Nickel
- Chrome/Matte Black
- Matte Black
|
Features:
- Number of Functions:
- Showerhead: 1
- Handshower: 4
- Matching Spray Face: Yes
Model Numbers: The N207C0 and N214C0 are the same product, but sold through different distribution sources.
Operation: When the shower system is turned on, water will flow from the showerhead. To activate the handheld shower, engage the button on the front of the handshower. This will provide a shared flow of water from the showerhead and handshower. The handshower does not operate independently.
|
|
|
|
Intro Year:
Prior to 2020
Warranty:
Nebia 1.0 and 2.0 only: 1-year warranty, Contact Nebia or call 1-855-988-9663
Nebia by Moen 3.0 Contact Us or Call 1-800-BUY-MOEN
|
Dimensions:
- Slide Bar Length:
- Spray Face Diameter:
GPM:
- Showerhead: 1.35
- Showerhead and Handshower together: 1.75
Finishes:
- Chrome
- Matte Gray
- Matte Black
|
Features:
- Number of Functions:
- Matching Spray Face:
Operation: When the shower system is turned on, water will flow from the showerhead. To activate the handheld shower, engage the button on the front of the handshower. This will provide a shared flow of water from the showerhead and handshower. The handshower does not operate independently.
|
|
3671EP
|
Intro Year:
2019
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 4-1/2"
GPM: 1.75
Finishes:
- Chrome
- Brushed Nickel
- Matte Black
|
Features:
- Number of Functions: 5
- Matching Spray Face: Yes
- Adjustable Handshower Cradle: To adjust the height, engage the lever on the handshower cradle, for more information click here.
|
|
3670EP
|
Intro Year:
2019
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 4-1/2"
GPM: 1.75
Finishes:
- Chrome
- Brushed Nickel
- Matte Black
|
Features:
- Number of Functions: 5
- Matching Spray Face: Yes
- Adjustable Handshower Cradle: To adjust the height, engage the lever on the handshower cradle, for more information click here
|
|
28501-Engage
|
Intro Year:
2019
|
Dimensions:
- Slide Bar Length: 19"
- Spray Face Diameter:
- Showerhead: 6-3/4"
- Handshower: 3-3/4"
GPM: 2.5
Finishes:
- Chrome
- Spot Resist Brushed Nickel
|
Features:
- Number of Functions:
- Showerhead: 1
- Handshower: 6
- Matching Spray Face: Yes
- Adjustable Handshower Cradle To adjust the height, loosen or tighten the lower cradle nut, for additional information, click here.
- Slide Bar Mounting System: To install the slide bar retainer bracket, engage it with the bracket on the wall and rotate it, for additional information, click here.
|
|
28586-Attract
|
Intro Year:
2019
|
Dimensions:
- Slide Bar Length: 19"
- Spray Face Diameter:
- Showerhead: 6-3/4"
- Handshower: 3-3/4"
GPM: 2.5
Finishes:
- Chrome
- Spot Resist Brushed Nickel
|
Features:
- Number of Functions:
- Showerhead: 1
- Handshower: 6
- Matching Spray Face: Yes
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
- Slide Bar Mounting System: To install the slide bar retainer bracket, engage it with the bracket on the wall and rotate it, for additional information, click here.
|
|
3558EP
|
Intro Year:
2018
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 4-3/8"
GPM: 1.75
Finishes:
- Chrome
- Brushed Nickel
- Matte Black
- Oil Rubbed Bronze
|
Features:
- Number of Functions: 5
- Matching Spray Face: Yes
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
S3880EP/3988
|
Intro Year:
2018
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter:
- S3880ep: 1"
- 3988ep: 1-1/8"
GPM: 1.75
Finishes:
- Chrome
- Brushed Nickel
- Spot Resist Brushed Nickel
- Mediterranean Bronze
- Oil Rubbed Bronze
|
Features:
- Number of Functions: 1
- Matching Spray Face: Yes
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
26035-Renewal
|
Intro Year:
2018
|
Dimensions:
- Slide Bar Length: 19"
- Spray Face Diameter:
- Showerhead: 4-1/2"
- Handshower: 4-1/2"
GPM: 1.75
Finishes: Spot Resist Brushed Nickel
|
Features:
- Number of Functions:
- Showerhead: 5
- Handshower: 5
- Matching Spray Face: Yes
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
- Slide Bar Mounting System: To install the slide bar retainer bracket, engage it with the bracket on the wall and rotate it, for additional information, click here.
|
|
TS3661NH-Annex
|
Intro Year:
2016
|
Dimensions:
- Slide Bar Length: 19"
- Spray Face Diameter:
- Showerhead: Not included
- Handshower: Not included
GPM: varies by model chosen
Finishes:
- Chrome
- Brushed Nickel
- Matte Black
- Oil Rubbed Bronze
- Brushed Gold
|
Features:
- Showerhead and Handshower: Not included
- Diverter functions: 2 independent functions (the showerhead and handshower cannot be operated at the same time)
- Diverter Handle: The lever located on the front of the slide bar allows you to independently operate the showerhead or the handshower
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3668EP
|
Intro Year:
2013
|
Dimensions:
- Slide Bar Length: 24"
- Spray Face Diameter: 4"
GPM: 1.75
Finishes:
- Chrome
- Brushed Nickel
- Oil Rubbed Bronze
|
Features:
- Number of Functions: 1
- Matching Spray Face: Yes
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3667EP/ 3669EP
|
Intro Year:
2013
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 4"
GPM: 1.75
Finishes:
- Chrome
- Brushed Nickel
- Oil Rubbed Bronze
- Brushed Gold
- Matte Black
|
Features:
- Number of Functions: 4
- Matching Spray Face: Yes
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
25113/25013/ 25000-Refresh
|
Intro Year:
2013
|
Dimensions:
- Slide Bar Length: 19"
- Spray Face Diameter:
- Showerhead: 4"
- Handshower: 4"
- Hose: 59" Plastic
-
GPM:
- 2.5
- EP suffix: 2.0
-
Finishes:
- Chrome
- Spot Resist Brushed Nickel
|
Features:
- Number of Functions:
- Showerhead: 5
- Handshower: 5
- Matching Spray Face: Yes
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
- Slide Bar Mounting System: To install the suction cup bracket, place it onto the adhesive disk on the wall and engage the locking tab, for additional information,click here.
- Includes:Washcloth hook located on the suction cup bracket, for additional information, click here.
|
|
|
40124-Capstone
|
Intro Year:
2013
Warranty:
10 year limited warranty
|
Dimensions:
- Grab bar/Slide Bar
- Length: 24"
- Diameter: 1-1/4"
- Spray Face Diameter: 3-1/4"
GPM: 1.5
Finishes:
|
Features:
- Number of Functions: 3
- Matching Spray Face: No
- Adjustable Handshower Cradle: To adjust the height, raise or lower the lever on the handshower cradle, for more information click here.
- ADA compliant
|
|
52124GBM25
|
Intro Year:
2013
Warranty:
Residential Installation: Lifetime Limited Warranty.
Commercial Installation: 5-year limited
|
Dimensions:
- Grab Bar/Slide Bar
- Length: 24"
- Diameter: 1-1/4"
- Spray Face Diameter: 3-1/4"
GPM: 2.5
Finishes:
- Chrome
- Classic Brushed Nickel
|
Features:
- Number of Functions: 1
- Matching Spray Face: No
- Adjustable Handshower Cradle: To adjust the height, raise or lower the lever on the handshower cradle, for more information click here.
- ADA compliant
|
|
52136GBM25
|
Intro Year:
2013
Warranty:
Residential Installation: Lifetime Limited Warranty.
Commercial Installation: 5-year limited
|
Dimensions:
- Grab Bar/Slide Bar
- Length: 36"
- Diameter: 1-1/4"
- Spray Face Diameter: 3-1/4"
GPM: 2.5
Finishes:
- Chrome
- Classic Brushed Nickel
|
Features:
- Number of Functions: 1
- Matching Spray Face: No
- Adjustable Handshower Cradle: To adjust the height, raise or lower the lever on the handshower cradle, for more information click here.
- ADA compliant
|
|
|
52224GBM15
52224GBM17
5224GBM25
52224GBP25
|
Intro Year:
2013
Warranty:
Residential Installation: Lifetime Limited Warranty.
Commercial Installation: 5-year limited
|
Dimensions:
- Grab Bar/Slide Bar
- Length: 24"
- Diameter: 1-1/2"
- Spray Face Diameter: 3-1/4"
GPM:
- 52224GBM15-1.5
- 52224GBM17-1.75
- 52224GBM25-2.5
- 52224GBP25-2.5
Finishes:
- Chrome
- Classic Brushed Nickel
|
Features:
- Number of Functions: 1
- Matching Spray Face: No
- Adjustable Handshower Cradle: To adjust the height, raise or lower the lever on the handshower cradle, for more information click here.
- ADA compliant
|
|
S3870EP-Twist
|
Intro Year:
2012
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 3-3/4"
GPM: 1.75
Finishes:
- Chrome
- Brushed Nickel
- Oil Rubbed Bronze
|
Features:
- Number of Functions: 4
- Matching Spray Face: Yes
- Twist: To utilize one of the four spray settings, rotate the face of the handshower. For additional information on this feature, click here.
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
52740EP17-Envi
|
Intro Year:
2012
Warranty:
Residential Installation: Lifetime Limited Warranty.
Commercial Installation: 5-year limited
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 3-5/16"
GPM: 1.75
Finishes:
- Chrome
- Classic Brushed Nickel
|
Features:
- Number of Functions: 3
- Matching Spray Face: No
- Adjustable Handshower Cradle: To adjust the height, loosen the knob on the side of the handshower cradle.
|
|
3887EP
|
Intro Year:
2011
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 1-1/4"
GPM: 1.75
Finishes:
- Chrome
- Brushed Nickel
- Matte Black
- Brushed Gold
|
Features:
- Number of Functions: 1
- Matching Spray Face: Yes
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3868/3868EP
|
Intro Year:
2011
|
Dimensions:
- Slide Bar Length: 24"
- Spray Face Diameter: 4"
GPM:
Finishes:
- Chrome
- Brushed Nickel
- Brushed Gold
- Oil Rubbed Bronze
|
Features:
- Number of Functions: 1
- Matching Spray Face: Yes
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
|
S12107EP-
Weymouth
|
Intro Year:
2011
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 3-3/8"
GPM: 1.75
Finishes:
- Chrome
- Brushed Nickel
- Polished Nickel
- Oil Rubbed Bronze
- Brushed Gold
|
Features:
- Number of Functions: 1
- Matching Spray Face: Yes
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3863EP-Envi
|
Intro Year:
2011
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 4"
GPM: 1.75
Finishes:
|
Features:
- Number of Functions: 3
- Matching Spray Face: Yes
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
|
52236GBM15
52236GBM17
52236GBM25
52236GBP25
|
Intro Year:
2011
Warranty:
Residential Installation: Lifetime Limited Warranty.
Commercial Installation: 5-year limited
|
Dimensions:
- Grab Bar/Slide Bar
- Length: 36"
- Diameter: 1-1/2"
- Spray Face Diameter: 3-1/4"
GPM:
- 52236GBM15-1.5
- 52236GBM17-1.75
- 52236GBM25-2.5
- 52236GBP25-2.5
Finishes:
- Chrome
- Classic Brushed Nickel
|
Features:
- Number of Functions: 1
- Matching Spray Face: No
- Adjustable Handshower Cradle: To adjust the height, raise or lower the lever on the handshower cradle, for more information click here.
- ADA compliant
|
|
25002/25022/25012-Refresh
|
Intro Year:
2010
|
Dimensions:
- Body Spray Assembly:
- Spray Face Diameter:
- Showerhead: 4"
- Body Spray: 2"
GPM: 2.5
Finishes:
- Chrome
- Spot Resist Brushed Nickel
|
Features:
- Number of Functions:

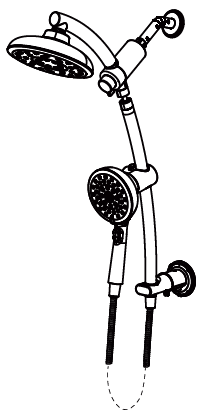

- Showerhead: 5
- Body Sprays: 2
- Matching Spray Face: Yes
- Diverter: The lever located on the side of the shower arm bracket allows you to independently operate the handshower or body sprays or operate them at the same time.
- Slide Bar Mounting System: To install the suction cup bracket, place it onto the adhesive disk on the wall and engage the locking tab, for additional information, click here.
- Includes: Washcloth hook located on the suction cup bracket, for additional information, click here.
|
|
|
52715
|
Intro Year:
2010
Warranty:
Residential Installation: Lifetime Limited Warranty.
Commercial Installation: 5-year limited
|
Dimensions:
- Slide Bar Length: 36"
- Spray Face Diameter: 3-3/16"
GPM: 2.5
Finishes: Chrome
|
Features:
- Number of Functions: 1
- Matching Spray Face: No
- Adjustable Handshower Cradle: To adjust the height, loosen the knob on the side of the handshower cradel.
|
|
|
3879/S3879EP
90 Degree
|
Intro Year:
2009
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 3-1/8"
GPM: 1.75
Finishes:
|
Features:
- Number of Functions: 1
- Matching Spray Face: Yes
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3885-Level
|
Intro Year:
2008
|
Dimensions:
- Slide Bar Length: 22"
- Spray Face Diameter: 1-1/4"
GPM: 2.5
Finishes:
|
Features:
- Number of Functions: 1
- Matching Spray Face: Yes
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3869/3869EP
|
Intro Year:
2007
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 2"
GPM:
Finishes:
- Chrome
- Antique Nickel
- Brushed Nickel
- Oil Rubbed Bronze
- Wrought Iron
- Pewter
- Antique Bronze
|
Features:
- Number of Functions: 1
- Matching Spray Face: No
- Handshower Material: Metal
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3867/3867EP
|
Intro Year:
2007
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 4"
GPM:
Finishes:
- Chrome
- Antique Bronze
- Brushed Nickel
- Chrome/Polished Brass
- Polished Brass
- Satine
- Brushed Bronze
- Platinum
|
Features:
- Number of Functions: 4
- Matching Spray Face: No
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3849
|
Intro Year:
2006
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 2"
GPM: 2.5
Finishes:
- Chrome
- Antique Nickel
- Brushed Nickel
- Oil Rubbed Bronze
- Wrought Iron
- Pewter
- Antique Bronze
|
Features:
- Number of Functions: 1
- Matching Spray Face: No
- Handshower Material: Metal
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3844
|
Intro Year:
2006
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 4-13/16"
GPM: 2.5
Finishes:
- Chrome
- Brushed Nickel
- Oil Rubbed Bronze
|
Features:
- Number of Functions: 4
- Matching Spray Face: No
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3837
|
Intro Year:
2005
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 4-13/16"
GPM: 2.5
Finishes:
- Chrome
- Chrome/Polished Brass
- Glacier
- Polished Brass
- Brushed Nickel
- Platinum
- Satine
- Classic Gold
- Nickel
|
Features:
- Number of Functions: 4
- Matching Spray Face: No
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3897-Revolution
|
Intro Year:
2003
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 3-3/16"
GPM: 2.5
Finishes:
- Chrome
- Satine
- Platinum
- Polished Brass
|
Features:
- Number of Functions: Continuous Adjustability
- Matching Spray Face: Yes
- Revolution: To utilize the spiraling water feature, rotate the dial on the handshower. For additional information on this feature, click here.
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3877
|
Intro Year:
1999
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 3-1/4"
GPM: 2.5
Finishes:
- Chrome
- Chrome/Polished Brass
- Glacier
- Polished Brass
|
Features:
- Number of Functions: 3
- Matching Spray Face: No
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3847
|
Intro Year:
1999
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 3-5/8"
GPM: 2.5
Finishes:
- Chrome
- Chrome/Polished Brass
- Glacier
- Polished Brass
- Black Opal
- Platinum
- Satine
- Classic Gold
- Nickel
|
Features:
- Number of Functions: 3
- Matching Spray Face: No
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3827
|
Intro Year:
1999
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 3-3/16"
GPM: 2.5
Finishes:
- Chrome
- Glacier
- Chrome/Polished Brass
- Polished Brass
|
Features:
- Number of Functions: 3
- Matching Spray Face: No
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3817
|
Intro Year:
1999
|
Dimensions:
- Slide Bar Length: 30"
- u: 3-3/16"
GPM: 2.5
Finishes:
- Chrome
- Glacier
- Polished Brass
|
Features:
- Number of Functions: 1
- Matching Spray Face: No
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3992-Pulsation
|
Intro Year:
1998
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 1-1/2"
GPM: 2.5
Finishes: Chrome/White
|
Features:
- Number of Functions: Pulsating and Regular Spray
- Adjustable Handshower Bracket: To adjust the height, loosen the knob on the side of the handshower bracket.
|
|
|
52710
52710EP15
52710LF16
|
Intro Year:
1998
Warranty:
Residential Installation: Lifetime Limited Warranty.
Commercial Installation: 5-year limited
|
Dimensions:
- Slide Bar Length: 30"
- Spray Face Diameter: 3-13/16"
GPM:
- 2.5
- EP15 suffix: 1.5
- LF16 suffix: 1.6
Finishes:
- Chrome
- Classic Brushed Nickel
|
Features:
- Number of Functions: 1
- Matching Spray Face: No
- Adjustable Handshower Cradle: To adjust the height, loosen the knob on the side of the handshower cradle.
|
|
3982-Pulsation
|
Intro Year:
1997
|
Dimensions:
- Slide Bar Length: 24"
- Spray Face Diameter: 1-1/2"
GPM: 2.5
Finishes: Chrome
|
Features:
- Number of Functions: Pulsating and Regular Spray
- Adjustable Handshower Cradle To adjust the height, loosen the knob on the side of the handshower cradle.
|
|
3990-Pulsation
|
Intro Year:
1996
|
Dimensions:
- Slide Bar Length: 24"
- Spray Face Diameter: 1-1/2"
GPM: 2.5
Finishes: Chrome/White
|
Features:
- Number of Functions: Pulsating and Regular Spray
- Adjustable Handshower Cradle: To adjust the height, loosen the knob on the side of the handshower cradle.
|
|
|
52709
|
Intro Year:
1996
|
Dimensions:
- Slide Bar Length: 24"
- Spray Face Diameter: N/A
GPM: 2.5
Finishes: N/A
|
Features:
- Matching Spray Face: No
- Includes a Slide Bar and Wall bracket: for a primary and a secondary location.
- Adjustable Handshower Cradle: To adjust the height, loosen the knob on the side of the handshower cradle.
|
|
3876
|
Intro Year:
1994
|
Dimensions:
- Slide Bar Length: 24"
- Spray Face Diameter: 3-1/8"
GPM: 2.5
Finishes:
- Chrome
- Glacier
- Polished Brass
|
Features:
- Number of Functions: 3
- Matching Spray Face: No
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
3856
|
Intro Year:
1994
|
Dimensions:
- Slide Bar Length: 24"
- Spray Face Diameter: 2-5/8"
GPM: 2.5
Finishes:
- Chrome
- Glacier
- Polished Brass
|
Features:
- Number of Functions: Adjustable Spray - Rotate Outer Ring to Select Coarse or Fine Spray
- Matching Spray Face: No
- Handshower Material: Clear plastic handle
- Adjustable Handshower Cradle: To adjust the height, engage the push button on the top of the handshower cradle.
|
|
For warranty information, see article How to Identify if My Product is Warrantied.
For a comprehensive guide, visit solutions.moen.com and select the type of product you are repairing. The guide will contain specific information associated with that style of product.
