Circuit Board Redesign 2014:

There are two versions of the Circuit Boards for the Moen Commercial Sensor Flush Valves and Faucets. These are interchangeable.

Circuit Board Changes:

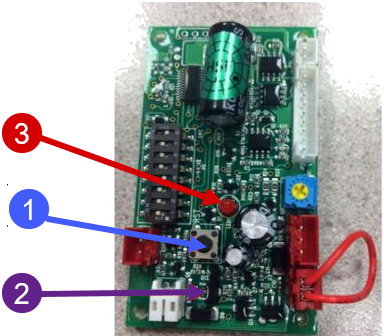

  1. Reset Button: The Reset Button moved from the side to the middle. It changed in size, shape and color.
  2. AC/DC Switch: The AC/DC Switch was replaced by a transistor that detects the AC/DC power source automatically.
  3. Red Indicator Light: The Red Light was moved from the top of the Circuit Board to the middle.
  4. Green Indicator Light: The Green Light was removed the start-up sequence no longer includes this light.
  • New start-up sequence:
    • AC type: Red light flashes 6 times
    • DC type: Red light flashed 3 times
  • When using the product:
    • AC type: Red light flashes 1 time
    • DC type: Red light flashes 1 time
  • LED Indicator Light::
    • Continuous blink indicates batteries are nearing end of life.




Circuit Board Prior to 2014




Circuit Board Redesign 2014
Circuit Board prior to 2014:

 Moen Freehand Electronic Flush Valve Models:8310, 8312. 8314, 8310R16, 8310R35, 8312R10, 8312R15

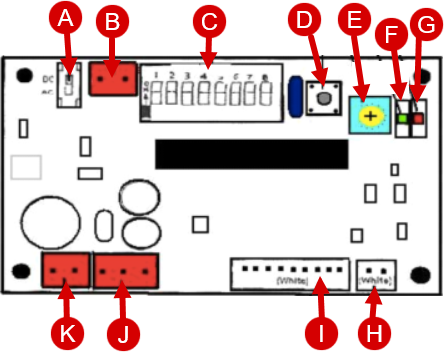

Circuit Board Prior to 2014:

  1. AC/DC Switch
  2. Battery Holder Pin Connection (Red)
  3. Dip Switches (SW)
  4. Reset Button
  5. Sensor Distance Adjustment (SDA)
  6. Indicator Light (Green)
  7. Indicator Light (Red)
  8. Solenoid Pin Connection (White)
  9. Sensor Eye Cable, Pin Connector (White)
  10. AC Power Adapter Pin Connector (Red)
  11. Battery Holder Pin Connector (White)
Setting the Dip Switch for Moen Sensor Flush Valves prior to 2014:

Push the Reset Button (D) on the Circuit Board after any Dip Switch (C) Adjustments.

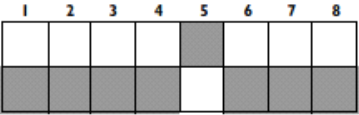

  • Top Row shaded on diagrams below = On
  • Bottom Row shaded on diagrams below = Off


  • Factory Pre-Set: Urinal
  • Model: 8312, 8314, 8312R10
  • Flush Time: 2 Seconds
  • GPF: 1
  • Arming Time: 3 Seconds


  • Factory Pre-Set: Urinal
  • Model: 8312R15
  • Flush Time: 3 Seconds
  • GPF: 1.5
  • Arming Time: 3 Seconds


  • Factory Pre-Set: Urinal
  • Model: 8315
  • Flush Time: 1 Seconds
  • GPF: .5
  • Arming Time: 3 Seconds


  • Factory Pre-Set:  Closet
  • Model: 8310, 8310R35
  • Flush Time: 3 Seconds
  • GPF: 1.6
  • Arming Time: 4 Seconds


  • Factory Pre-Set: Closet
  • Model: 8310R35
  • Flush Time: 7 Seconds
  • GPF: 3.5
  • Arming T
  • ime: 4 Seconds


  • Factory Pre-Set: Closet
  • Model: 8311
  • Flush Time: 2.5 Seconds
  • GPF: 1.28
  • Arming Time: 4 Seconds


  • Factory Pre-Set: Optional
  • Model: Urinal
  • Flush Time: 1 Seconds
  • GPF: 0.5
  • Arming Time: 3 Seconds


  • Factory Pre-Set: Optional
  • Model: Closet
  • Flush Time: 4 Seconds
  • GPF: 2
  • Arming Time: 4 Seconds
