Hot and Cold Sill Faucets: How to Identify Product Generations

Intro Year: 2007 Model Numbers: HC200508, HC200512

Key Legend:

Cartridge Install: Wiggle stem side to side until seats. Confirm Dimple at the top.

Dimple at top

Cartridge

Handle Kit

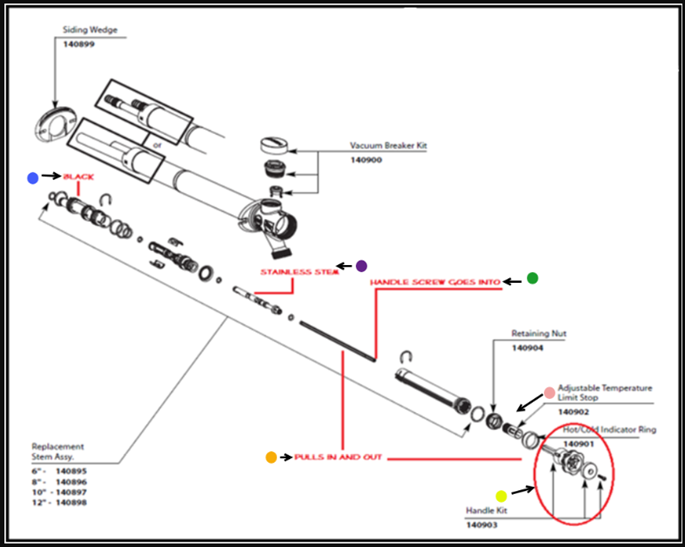

Intro Year: 2009 Model Numbers: HC400506, HC400508, HC400510, HC400512

Key Legend:

Black

Stainless Stem

Handle Screw goes into

Cartridge Handle pulls in and out

bright yellow.png Handle Kit

Adjustable Temperature Limit Stop

First Version HC200 Series Hole:

Second Version HC400 Series Slot:

Handle Body:

First Version HC200 Series: Handle design is shorter without a protusion on the back of it.
Second Version HC400 Series: Handle design has a stem extend from the back.

Interior of Handle:

First Version HC200 Series: The interior of the Handle Assembly is not designed with a Temperature Limit Stop.
Second Version HC400 Series: The interior of the Handle Assembly includes a Red Temperature Limit Stop.

The Cartridges are Not interchangeable between the two versions.

HC200 series Cartridge

HC400 series Cartridge
