How do Sensor Flush Valves work?

Question 1: How does a Moen Commercial Sensor Flush Valve system work?

• Answer: Moen Commercial Sensor Flush Valve systems operates by emitting a continuous infrared beam from the sensor eye

Question 2: What happens when a user enters the beam range of a Moen Commercial Sensor Flush Valve?

• Answer: When a user enters the beam range, the system goes into a “Hold” mode for as long as the user remains in the range of the sensor.

Question 3: What triggers the flush cycle in a Moen Commercial Sensor Flush Valve?

• Answer: When the user steps out of the range, the sensor sends a signals to the solenoid triggering the flush cycle

Question 4: Does the sensor in a Moen Commercial Sensor Flush Valve need manual resetting after each use?

• Answer: No, the sensor automatically resets and is ready for the next user.

Question 5: Is the piston for the Moen Commercial Sensor Flush Valves the same as the one used in the Moen Commercial Manual Flush Valves? Are they interchangeable?

• Answer: No, the pistons are NOT the same. They are similar but the non-hold open feature has been removed from the Moen Commercial Sensor Flush Valve piston.

  For clarity and improved understanding, here are the key points regarding the pistons:

  • The piston used in the Moen Commercial Sensor Flush Valve is different from the one used in the Moen Commercial Manual Flush Valve.
  • This modification ensures that all Moen Commercial Sensor Flush Valves can use the same piston assembly, simplifying service and maintenance.
  • Although they appear similar, the Moen Commercial Sensor Flush Valve Piston does not include the non-hold open feature.

Question 6: How is the Sentinel Flush set for a Moen Commercial Sensor Flush Valve?

• Answer: Sentinel Flush setting for the Moen Commercial Sensor Flush Valves can be configured in programming mode. Detailed instructions for entering programming mode can be found in the Installation and Service (INS) manual or by visiting www.moen.com/commercial/sensor.
• By default, Sentinel Flush is turned off when the unit is shipped from the factory.

Question 7: How is the Distance set for a Moen Commercial Sensor Flush Valve?

• Answer: The Distance settings for the Moen Commercial Sensor Flush Valves can be configured in programming mode. Detailed instructions for entering programming mode can be found in the Installation and Service (INS) manual or by visiting www.moen.com/commercial/sensor.
• The default settings and ranges for the Moen Commercial Sensor Flush Valves for Distance are as follows:
  • Closet: default is 24”, with a range of 17-36”
  • Urinal: default is 12.25”, with a range of 1-17”

Question 8: How is the Flush Volume set for a Moen Commercial Sensor Flush Valve?

• Answer: Flush Volume settings can be configured in programming mode. Detailed instructions for entering programming mode can be found in the Installation and Service (INS) manual or by visiting www.moen.com/commercial/sensor.

Question 9: Can a Moen Commercial Manual Flush Valve be converted to a Moen Commercial Sensor Flush Valve?

• Answer: Converting a Moen Commercial Manual Flush Valve to a Sensor-activated one requires replacing the entire valve. Moen has made it easier by creating convenient  Moen Commercial Retrofit Flush Valves, see models: 8310SR35, 8310R16, 8310RDF16, 8310SR128, 8312R10, 8312SR05, 8312SR125.

Question 10: What are the vandal resistant features for Moen Commercial Sensor Flush Valves?

• Answer: Metal Construction: All metal construction makes it difficult to damage or destroy the product.
• Disable Option: The Chrome Override Cap, Service Kit 104634 can be used to disable the manual override.

Question 11: How does the Dual Flush feature work on Moen Commercial Sensor Flush Valves?

• Answer: The Dual Flush feature provides two flushing options based on the duration the user is present in front of the closet. If the user remains for more than 1 minute, 1.6 gallons is flushed If the user is present for less than 1 minute, only 1 gallon is flushed.

Question 12: Is there an Moen AC transformer option available for the Moen Commercial Sensor Flush Valves?

• Answer: Yes, the Moen AC Transformer Service kit 104630 is available for Moen Commercial Sensor/Electronics Flush Valves, Faucets and Soap Dispensers..

Question 13: How many units can a single Moen AC transformer power?

•  Answer: A single Moen AC Transformer, Service kit 104630 can power up to 8 products, including faucets, flush valves, or soap dispensers (a combination of these products is also possible).
• For additional information on the Moen AC Transformer, Service kit 104630, see
  • Specification Sheet.
  • Installation Sheet

Question 14: Is the Moen Commercial Sensor Flush Valve ADA compliant?

• Answer: Yes, the product is ADA compliant.

Question 15: Is the Moen Commercial Sensor Flush Valve Manual Override ADA compliant?

• Answer: No, the Manual Override is not ADA compliant.

Question 16: Is the Moen Commercial Sensor Flush Valve Manual Override a non-hold open?

• Answer: No, it features a hold open function, which is necessary to maintain one piston assembly service kit.

Question 17: Is there a plug that can cover the Override Button on a Moen Commercial Sensor Flush Valve if desired?

• Answer: A Chrome Override Cap (Service Kit 104634) is available to disable the Manual Override if desired.

Question 18: Is the Infrared (IR) Sensor assembly replaceable?

• Answer: Yes, the Infrared Sensors are available as Service Kit 182537. This kit includes: the sensor and bracket, screws, wrench.

Question 19: What is the difference between the Water Closet and Urinal versions?

• Answer: The differences are found in the flush volumes, supply size, and spud size.

Question 20: Is the M•Power flush valve vacuum breaker interchangeable with the Moen Commercial Manual Flush Valve?

• Answer: Yes, the vacuum breaker for both is Service Kit 104570.

Question 21: Is the vacuum breaker on a Moen Commercial Sensor Flush Valve high pressure functional?

• Answer: Yes, this vacuum breaker is specifically engineered to handle high back pressure conditions.

Question 22: Can you use M•Dura angle stops and discharge tubes with M•Power valves?

• Answer: Yes, M•Dura angle stops and discharge tubes are compatible with M•Power valves. However, if inlet length adapters are required, they will need a M•Power inlet service kit, see chart below.

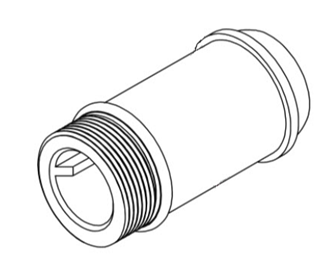

 Fits Moen Flush Valves and Delaney Style Angle Stops: ( Part Number - Length)

104500 - 2.25" 104501 - 1.75" 104502 - 2.75" 104503 - 3.25" 104504 - 3.75" 104505 - 4.25"

Fits Moen Flush Valve and Sloan, Zurn Style Angle Stops: (Part Number - Length)

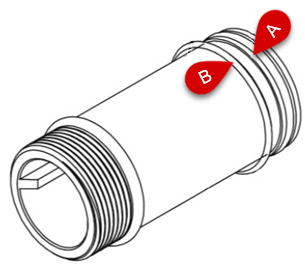

This O-ring (A) / Snap Ring (B) design from Sloan and Zurn are not Compatible with Moen and Delaney Angle Stops.

A. O-ring B. Snap Ring

104506 - 2.125" (included with FV) 104507 - 2.50" 104509 - 3.50" 104510 - 4.00" 104511 - 4.50" 104512 - 5.00" 105413 - 5.50"

Question 23: What type of testing has been performed on the Moen Commercial Sensor Flush Valve?

• Answer: Third party certified to meet: ASSE1037 / ASME A112.1037 / CSA125.37, ASME A112.19.2 / CSA B45.1.

Question 24: The Moen Commercial Sensor Flush Valve is designed to operate at what pressure range?

• Answer: The Moen Commercial Flush valve is design to operate from 20 – 125 psi

Question 25: The Moen Commercial Sensor Flush Valve will work with which sanitary ware or bowls?

• Answer: Moen Commercial Sensor Flush Valves are designed to be installed with floor mounted or wall hung top spud bowls with matching flow rates as specified by the bowl manufacturer.

Question 26: Can the Moen Commercial Sensor Flush Valve model be retrofitted to be compatible with Sloan, Zurn, Delaney, American Standard & Kohler?

• Answer: Moen Commercial Sensor Flush Valves are directly compatible with standard angle stops. Moen offers multiple inlet & outlet lengths for replacing existing fixtures.  A full list of accessories/service kits are shown in the Moen Commercial catalog or EXP exploded parts page. Moen Commercial Price Catalog

Question 27: Can an ADA Grab Bar be installed behind a toilet using a Moen Commercial Sensor Flush Valve?

• Answer: The Moen Commercial Sensor Flush Valve (FV) is designed with a low profile and features a removable front shell for easy battery access.
• Moen also offers a 1-1/2" Offset Tail Piece, service kit 104560 that includes an offset discharge tube specifically for use with the Moen Commercial Sensor Flush Valve. This offset tube can be installed to accommodate the presence of the grab bar. For users of the bedpan washer, 8" Offset Tube with 1-1/2" Diameter, service kit 104600 offers a slightly shorter offset discharge tube, which can also be installed to account for the grab bar.

Question 28: Can the Moen Commercial Sensor Flush Valve be installed with the inlet elbow on the left or right side?

• Answer: Yes, the Moen Commercial Sensor Flush Valves are versatile and can be used in both right and left hand applications. To accommodate either orientation, simply remove two screws to rotate the cap 180º. This flexibility ensures that the Moen Commercial Sensor Flush Valve can be installed to suit your specific needs and space constraints.

Question 29: Are Moen Commercial Sensor Flush Valves available in decorative finishes?

• Answer: No, not at this time, Moen only offers the Moen Commercial Sensor Flush Valves in chrome.

Question 30: Is the sensor self-adaptive or adjustable on Moen Commercial Sensor/Electronics Flush Valves and Faucets? How often do you need to adjust it?

• Answer: Yes, the sensor is adjustable for sensing distance according to user preference. Typically, installers will not need to adjust the distance.
• Additionally, the sensor is self-adaptive to ambient lighting conditions.
• The sensor distance range is up to 17” for urinals and 17-36” for water closets. The default out-of-box distances are 12” for urinals and 24” for water closets.

Question 31: How do you set Sentinel Flow/Flush on Moen Commercial Sensor/Electronics Flush Valves and Faucets ?

• Answer: Sentinel flow/flush is initially set to “off” when the device is shipped from the factory. To activate sentinel flow/flush, please consult the provided instruction sheet or Sentinel Flow Video. Sentinel flow/flush must be activated or deactivated within 5 minutes of power up through program change mode.

Note: if you choose to modify other settings, program change mode is available for 5 minutes when the valve is powered-up.  You can access program change mode as many times as you want in that first 5 minutes.  After the valve has been powered for 5 minutes, you must disconnect the power and reconnect to have program change mode available again.

Question 32: How long does Sentinel Flush/Flow run when "on" and how often does it flow on a Moen Commercial Sensor/Electronics Flush Valves and Faucets?

• Answer: If on, sentinel flush will flush once after 24 hours of non-use.
• Time period is not adjustable.
• The flush valve will retain its settings when powered off.  If “on” and you wish to turn it “off”, this must also be done through program change mode.

Question 33: What battery type and brand is recommended for the Moen Commercial Sensor/Electronics Flush Valves and Faucet ?

• Answer: The recommended battery type is alkaline for the Moen Commercial Sensor/Electronics Flush Valves and Faucet . Please note that rechargeable batteries will not work with these products.

Question 34: What batteries come with the Moen Commercial Sensor/Electronics Flush Valves and Faucets?

• Answer: Each Moen Commercial Sensor/Electronics Flush Valves and Faucet  is shipped with a 4 pack of AA alkaline batteries.

Question 35: Are the Moen Commercial Sensor/Electronics Flush Valves and Faucets compatible with lithium batteries?

• Answer: Yes, the Moen Commercial Sensor/Electronics Flush Valves and Faucet is compatible with lithium batteries. Depending on the manufacturer, lithium batteries may last up to 25% longer than alkaline batteries.

Question 36: Can a 10 year battery be used on Moen Commercial Sensor/Electronics Flush Valves and Faucets?

• Answer: Battery life is dependent on the daily usage of the products. Any 10 year alkaline or lithium AA battery that are installed fresh into these products will last approximately 10 years if the usage is under 100 cycles/day.
• Moen does not offer any alternative energy/energy harvesting products at this time. Moen's focus is on simplicity, cost, availability, and serviceability. The Moen Commercial Sensor Flush Valve runs on common AA batteries to minimize our customers total cost of ownership.

Question 37: What is the battery life (alkaline vs. lithium) for a Moen Commercial Sensor/Electronics Flush Valves and Faucet ?

• Answer: Battery life varies significantly based on usage patterns and battery type:
• At 150 uses/day, the batteries will last approximately 8+ years
  • In high usage areas, alkaline batteries will last approximately 1,000,000+ cycles
  • In low usage areas, alkaline batteries will last approximately 10 years total: installation time + shelf time

Fuel Gauge: to check the power left in the batteries at any time, activate the system.

Question 38: What is the significance of the color for the Moen Commercial Sensor Activation LED Light?

• Answer: See Chart below.

Question 39: If the Moen Commercial Sensor/Electronics Flush Valves and Faucets are installed with a Moen AC Transformer, can you install batteries for back-up power?

• Answer: No, battery backup is not available for the Moen Sensor/Electronic Flush Valves and Faucets.

Question 40: Who do I call if I have additional technical product questions?

• Answer: You can contact the Moen Professional Line/Team directly at 1-877-Moen-PRO (1-877-663-6776). Our team is equipped with the expertise to assist you with any technical questions or concerns you may have regarding our products.
