Manual Flush Valves Problems and Fixes

Last updated
Save as PDF

Moen provides a series of Commercial Manual Flush Valves. This article highlights service issues encountered with Commercial Manual Flush Valves and the recommended corrective actions.

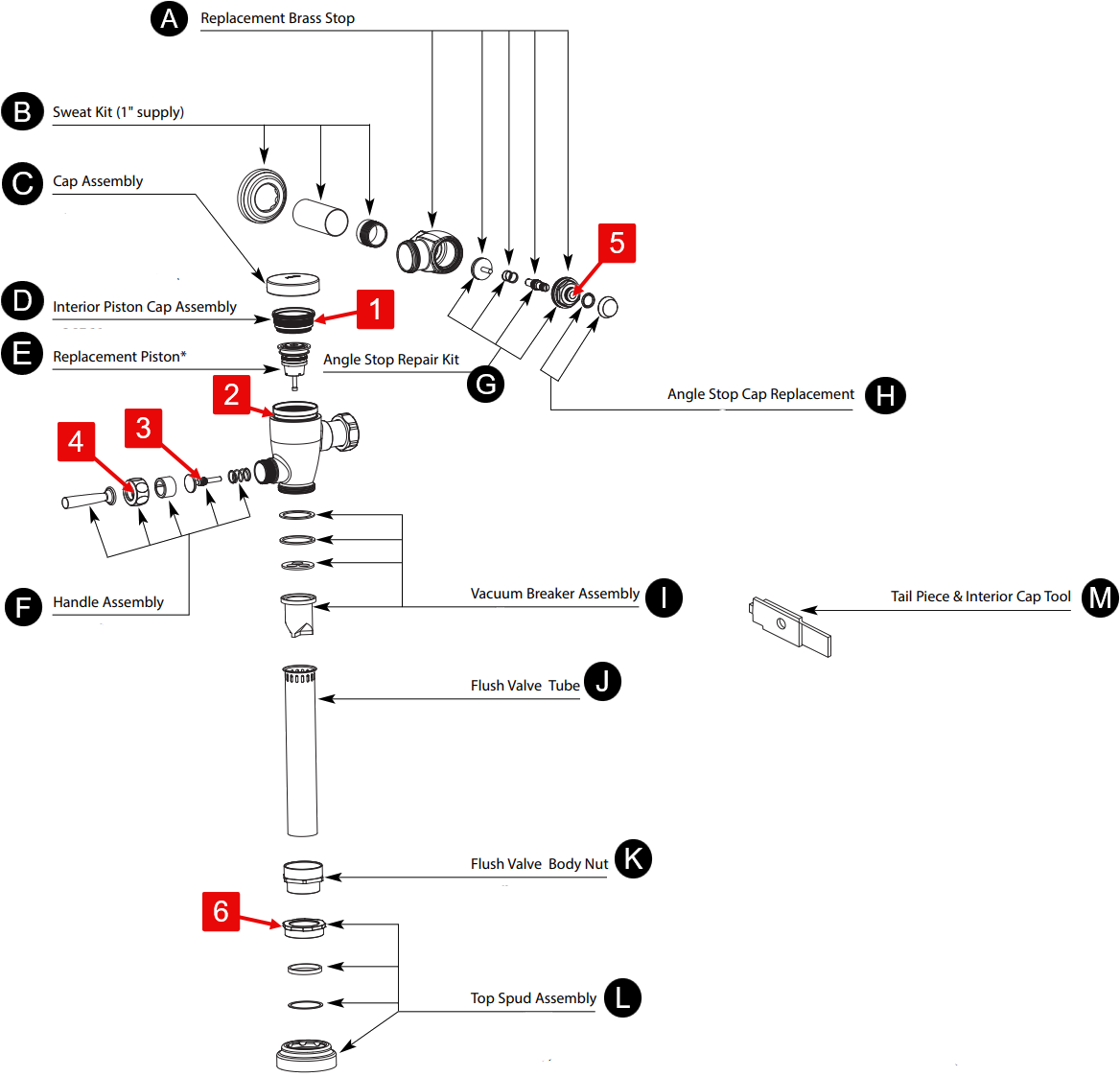

Parts of the Moen Manual Flush Valve:

A. Replacement Brass Stop

B. Sweat Kit (1" supply)

C. Cap Assembly/ Exterior Cap

D. Interior Piston Cap Assembly

E. Piston

F. Handle Assembly/ Pin Lever

G. Angle Stop Repair Kit

H. Angle Stop Cap Replacement

I. Vacuum Breaker Assembly

J. Flush Valve Tube/ Discharge Tube

K. Flush Valve Body Nut

L. Top Spud Assembly

M. Tail Piece & Interior Cap Tool

Moen Manual Flush Valve Troubleshooting:

Symptom: Handle Assembly/ Pin Lever is sticking, hard to flush, or handle exhibits extended reset time:

Solution: Re-lubricate Handle Assembly

Apply grease liberally to both O-Rings (3) in the Handle Assembly (F).

Symptom: Loud noise at shutoff:

Solution: Adjust Angle Stop Cap

Remove the Angle Stop Cap (H) from the elbow
- Use a flat-head screwdriver to gently pry the Angle Stop Cap (H) off.
Turn the Screw (5) clockwise.
Test the flush
Continue adjusting until the hard shutoff noise is eliminated

Symptom: The Moen Manual Flush Valve will not shut off or has an extremely long flush cycle:

The water supply shut off valves must be turned off- see article How to Turn Off the Water Supply to the Faucet

Solution 1: Inspect the Interior Piston Cap Assembly, O-Rings, and Valve Body

Using a 5/64" hex wrench, loosen and remove the set screw from the Cap Assembly (C)
- Remove the Cap Assembly (C)
Using a 3/8" hex wrench, loosen and remove the set screw from the Interior Piston Cap Assembly (D)
- Remove the Interior Piston Cap Assembly (D)
Lift, remove and inspect the Piston (E)
- Replace the Piston (E) if any seals are missing, worn, or damaged
Inspect inside walls of the Valve Body (2) for scratches, grooves, or indents
- The interior surface of the Valve Body (2) should be smooth to allow proper sealing. If the damage is too extensive the unit may need to be replaced.
For instructions on replacing the Piston (E), see How to replace the Piston and Exterior Cap on a Manual Flush Valve.

Symptom: Flush Valve Tube/ Discharge Tube has vertical movement above the Top Spud Assembly:

Solution: Secure the Flush Valve Tube

Tighten the Spud Nut (6) until the Flush Valve Tube (J) no longer moves vertically

Symptom: The Moen Manual Flush Valve is hard to disassemble:

Solution: Depressurize the Valve Assembly

The water supply shut off valves must be turned off- see article How to Turn Off the Water Supply to the Faucet

Press the Handle Assembly (F) down to relieve pressure

If pressure remains:

Using a 5/64" hex wrench, loosen and remove the set screw from the Cap Assembly (C)
- Remove the Cap Assembly (C)
Using a 3/8" hex wrench, loosen and remove the set screw from the Interior Piston Cap Assembly (D)
- Remove the Interior Piston Cap Assembly (D)
Lift, and reseat the Piston (E) to fully depressurize the valve

Symptom: Nothing happens when the Moen Manual Flush Valve's handle is depressed:

Solution 1: Verify incoming water supply

Confirm the water supply is turned on

Solution 2: Re-Lubricate the Handle Assembly O-Rings

The water supply shut off valves must be turned off- see article How to Turn Off the Water Supply to the Faucet

Check grease on the O-Rings (3) in the Handle Assembly (F)
Apply additional grease if dry
Back out the Handle Retaining Nut (4) then reinstall
Test flush operation after reassembly

Symptom: Extremely low flush volume:

Solution: Verify supply line size and water pressure

Verify the Supply Line size
- Minimum required size: 3/4 in (0.75 in)
Confirm water pressure
